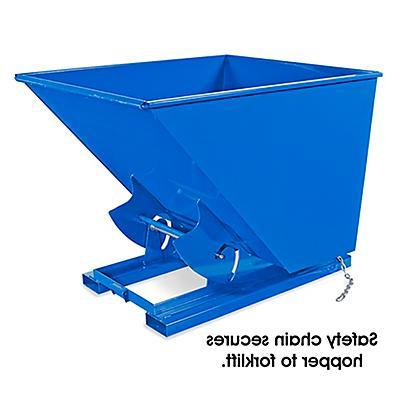

Standard Steel Dumping Hopper

Review the verified features and specifications for Standard Steel Dumping Hopper.

• Heavy-duty, all-welded steel construction
• Easy release of hopper with cable from forklift seat
• Safety chain for secure attachment to forklift
• 2,000 lb. capacity
• Optional accessories available
• Suggested use for wood and corrugated materials
• 1 cubic yard capacity, 2,000 lb. weight capacity
• Overall dimensions: 60 1/2 x 41 1/2 x 43 (L x W x H)
• Inside dimensions: 32 9/16 height, 54 3/4 length at opening, 37 3/4 x 20 15/16 bottom (W x L), 37 3/4 x 43 1/16 front/dumping chute (W x L)
• Fork pockets: 7 1/2 x 2 1/2 (W x H)
• Safety chain length: 36 overall, 28 usable
• Steel cable: 4' 6
• Not compatible with pallet trucks
• 76° dumping angle
• 1 cubic yard capacity = 201 US gallons, 27 cubic feet, 21.7 bushels
• Not leakproof, bumper kit available for self-dumping (H-5269)
• Compatible with 6 and 8 casters (hardware not included)
• Temperature range: -29° to 57° C (-20° to 135° F)
• Gray or black caster kits available (H-2505CASKIT, H-2473CASKIT)
• Compatible with 10 pneumatic casters (H-3329)
• Will not fit through standard doorway (32 clearance)
• Body thickness: 12 gauge, base thickness: 3 gauge (1/4), safety chain thickness: 5/16
